Installing the Game ¶

Cuis-Smalltalk does not come with any notion of a toolbar, but it is fairly easy to create one with a row LayoutMorph and some buttons:

installToolbar

| toolbar button |
toolbar := LayoutMorph newRow separation: 2.
button := PluggableButtonMorph model: self action: #startGame ::
   enableSelector: #isStopped;
   icon: Theme current playIcon;
   borderWidth: 2;
   borderColor: Color black;
   setBalloonText: 'Play the game';
   morphExtent: 32 asPoint.
toolbar addMorph: button.
...
self addMorph: toolbar layoutSpec: LayoutSpec new useMorphHeight

Observe enableSelector: #isStopped; indeed the “Play” button is only active when the game isStopped. The same applies with the “Stop” button – not shown here. The toolbar height – row layout – is shrunk to the height of its submorphs; to do so, the toolbar is added to the window with the appropriate specification LayoutSpec new useMorphHeight.

We first clear the playground, then install the cards in several rows. We remember each card’s position which we can access via x and y coordinates by storing the cards in a special Array2D array. The colors to be used are randomly shuffled and then assigned in the inner #to:do: block:

installCards

| colors  row |
playground removeAllMorphs.
cards := Array2D  newSize: size.
colors := self distributeColors shuffled.
1 to: size y do: [:y |
   row := LayoutMorph newRow.
   1 to: size x do: [:x | | card |
      card := MemoryCard model: self action: #flip: actionArgument: x@y.
      card layoutSpec: (LayoutSpec proportionalWidth: 1 proportionalHeight: 1).
      card cardColor: colors removeFirst.
      row addMorph: card.
      cards at: x@y put: card ].
   playground addMorph: row ]

We make the card interactive by using the PluggableButtonMorph’s model:action:actionArgument: selector. When clicked, the message #flip: is sent to the game window with the card’s x and y position in the cards array and playground:

MemoryCard model: self action: #flip: actionArgument: x@y

Game Logic ¶

The core of the game logic is in the flip: method. It first flips and locks⁶ the clicked card:

flip: position

| flippedCards |
(cards at: position) flip; lock.

Then it detects if all the flipped cards share the same color. To do so, we perform a clever trick in Smalltalk: we collect all the colors of the flipped cards, then convert the collection of colors into a Set instance; all duplicated colors are removed. If the size of the resulting set is not 1, it means the cards have different colors. In that case, we inform the user with a message, then unflip and unlock the clicked cards:

flippedCards := self flippedCards.
(flippedCards collect: [:aCard | aCard cardColor]) asSet size = 1 ifFalse: [
   "Give some time for the player to see the color of this card "
   self message: 'Colors do not match!'.
   self world doOneCycleNow.
   (Delay forSeconds: 1) wait.
   " Colors do not match, unflip the flipped cards and unlock "
   flippedCards do: [:aCard | aCard flip; unlock].
   ^ self]

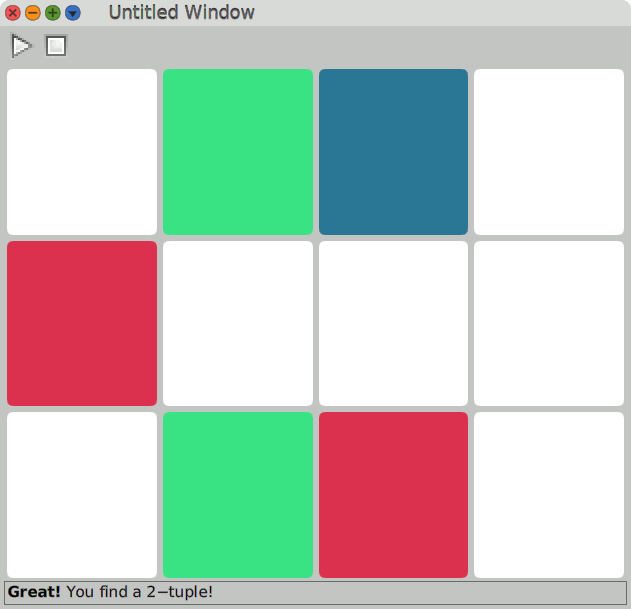

If the colors match, we check if we have reached the tupleSize association count – initialized by default to 2, to make pairs of cards. If so, we make the cards flash and mark them as done so they can’t be played anymore:

   flippedCards size = tupleSize ifTrue: [
      " We found a n-tuple! "
      self message: 'Great!' bold, ' You found a ', tupleSize asString, '-tuple!'.
      flippedCards do: #flash.
      flippedCards do: #setDone.

At this point in the game logic, in the event of a game win, we inform the user and update the game status:

      self isGameWon ifTrue: [
         self message: 'Congratulations, you finished the game!' bold red.
         playing := false] ]

Messages to the User ¶

The user is kept informed during gameplay by displaying messages in the status bar. This is set up at initialization time in the following method:

installStatusBar

statusBar := TextParagraphMorph new
   padding: 2;
   color: Color transparent;
   borderWidth: 1;
   borderColor: self borderColor twiceLighter ;
   setHeightOnContent.
self addMorph: statusBar layoutSpec: LayoutSpec new useMorphHeight.
self message: 'Welcome to ', 'Memory Game' bold

Its companion method #message: writes a new text message by updating the contents of the TextParagraphMorph instance:

message: aText

statusBar contents: aText ;
   redrawNeeded

A message sent to the status bar can be more than just a plain string; it can be a Text instance with styling attributes. To do so, we send specific messages to a string. For example, ’hello’ bold converts the ’hello’ string to a Text instance set to a bold style.

Examples of styling:

'Hello' red bold.
'Hello ' italic, ' my love' red bold.

To discover more message style attributes, browse the method categories text conversion ... of the CharacterSequence class.

Access and Test ¶

In the core logic of the game, we access the flipped cards in the playground by selecting the cards both not done and flipped:

flippedCards

^ cards elements select: [:aCard | aCard isDone not and: [aCard isFlipped] ]

The Array2D instance of the cards variable offers access to its cells with x and y coordinates; however, it does not offer the full range of the Collection protocol, particularly the select: method. Nevertheless, its underlying elements attribute is an Array, which is part of the Collection hierarchy; we use it to get the full power of the Collection protocol. We proceed the same way to select the done cards:

doneCards

^ cards elements select: #isDone

And undone cards are selected by a removal operation, prone to resist code evolution in the card protocol:

undoneCards

^ cards elements asOrderedCollection
   removeAll: self doneCards;
   yourself

In the core logic of the game, we test if the game is won by testing if all the cards are done. In that case, this count is equal to the number of cards in the game:

isGameWon

^ (cards elements select: #isDone) size = (size x * size y)

The remaining methods of the game do not require comment; they can be read in the complete source code of the Memory Game v1.
